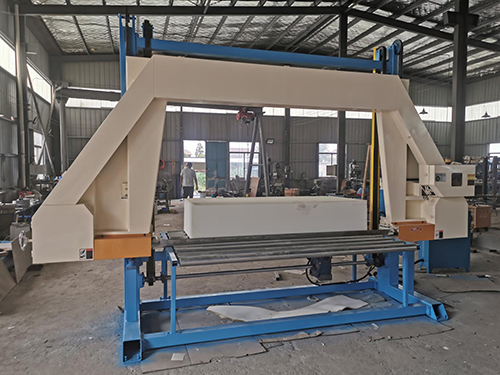

Foam cutting machine WHCCD-2400
This machine is installed on the foam conveyor line for continuous foam cutting to a certain length for transportation, storage and processing.
This machine is installed on the foam conveyor line for continuous foam cutting to a certain length for transportation, storage and processing. This kind of machine digital control, the knife belt is slender and sharp, moving up and down, cutting the foam of horizontal movement, the machine is simple to operate and the cutting is accurate.
Main Technical Spec iffication | ||
Model | WHCCD-2400A | WHCCD-2400B |
Cutting foam width | 2400mm | 2400mm |
| Cutting foam height | 1300mm | 1300mm |
| Cuting moving speed | 0-12mm/min | 21mm/min |
Blade length | L6200mm | L10940mm |
Conveyer belt speed | 0-8m/min | 0-6.8m/min |
Total power | 6Kw | 8.69Kw |
Weight | 1800Kg | 2000Kg |
Machine extemal size | L3700×W1300×H2300mm | L6000×W4559×H4000mm |
